Customized Color High-Strength Polyester Fiber Sports Hall Divider Net with 7.5m per Minute Operation

Customized Color High-Strength Polyester Fiber Sports Hall Divider Net with 7.5m per Minute Operation

Brand Name: FLYON
Model Number: Sports Hall Dividing Curtains
MOQ: 100
Price: $77-85
Detail Information
Place of Origin:
Guangdong, China
Material:
High-strength Polyester Fiber Or Glass Fiber Fabric+PVC
Motor Type:
Tubular-type Motor (220V, Single-phase)
Motor Power:
100 Nm
Motor Voltage:
220 V AC
Motor Diameter:
3 Feet
Operation Speed:
7.5m Per Minute
Stacking Dimension:
50 Cm
Maximum Length:
20 M
Maximum Area:
125 M²
Motor Synchronization:
Two Synchronized Motors For Larger Curtains
Operation Control:
Key Switch And Wireless Remote
Overheating Protection:
Automatic
Bottom Tube:
Padded
Seam Type:
Horizontal Seams
Rolling Action:
Smooth
Highlight:

Customized Color Divider Curtain

,

High-Strength Polyester Fiber Dividing Curtain

,

7.5m per Minute Sports Hall Divider Net

Product Description
High-Quality Sports Hall Divider Net for Stadium Ground Division Curtain

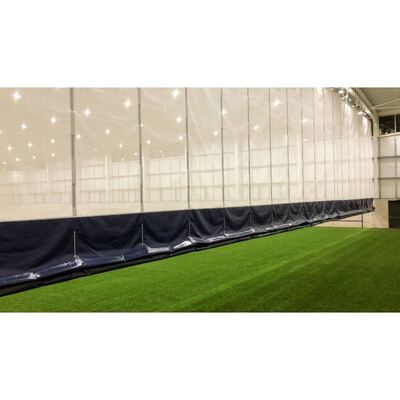

Customized Color High-Strength Polyester Fiber Sports Hall Divider Net with 7.5m per Minute Operation 0
The Center Roll Divider offers a simple overhead design for gymnasiums, eliminating hoist cables, straps, and overhead support rollers while maintaining minimal stack height.
As the aluminum drive tube rotates, it moves the curtain up, rolling both top and bottom sections neatly and compactly to the ceiling. This design eliminates wear points experienced with other dividers and allows the Center-Roll to operate twice as quickly as standard curtains.
The assembly operates extremely quietly, features automatic overheating protection, and is permanently lubricated for maintenance-free operation. When directly attached to the roof structure, this divider provides a stack dimension within 50cm of the ceiling for maximum clearance.
This fast folding action is achieved at 7.5m per minute. Available in solid and mesh, all solid, or all mesh finish configurations.
Product Specifications
ItemValue
Place of OriginChina
Product NameSports Hall Dividing Curtains
ColorCustomizable
BrandFlyon
MaterialHigh-strength polyester fiber or glass fiber fabric + PVC
Suitable PlacesGymnasium, school, and basketball court
Motor System Details

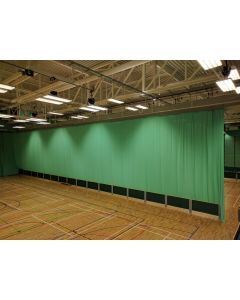

Customized Color High-Strength Polyester Fiber Sports Hall Divider Net with 7.5m per Minute Operation 1
Uses 100 Nm, 220 V AC tubular motor(s), 3 feet in diameter.
Tubular-type motor (220V, single-phase) with gear reducer and brake mechanism concealed inside the horizontal batten tube. Motor is equipped with up and down push-button type limit switches and an automatic reset thermal overload protection.
Motor Configuration

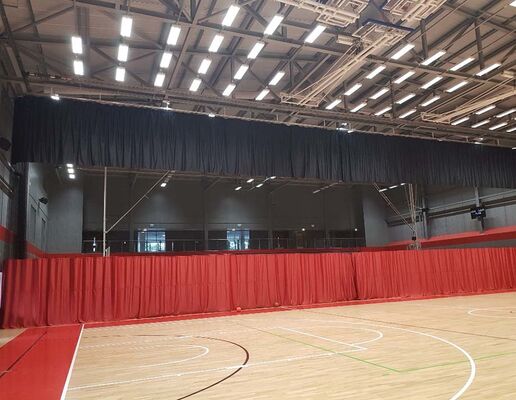

Customized Color High-Strength Polyester Fiber Sports Hall Divider Net with 7.5m per Minute Operation 2
Curtains up to 125 m² or 20 m long use single motor. Larger curtains use two synchronized motors.
Includes key switch operation standard. Also available with wireless remote control.
Performance Specifications

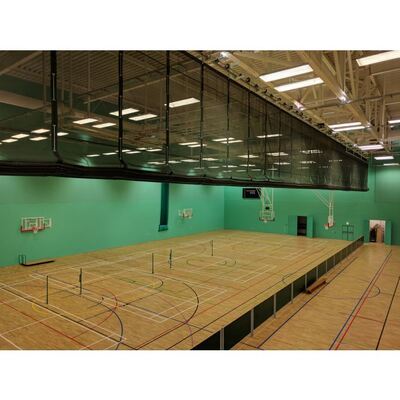

Customized Color High-Strength Polyester Fiber Sports Hall Divider Net with 7.5m per Minute Operation 3
Typical stacking dimension is approximately 50 cm. Curtain raises or lowers at a rate of approximately 7.5m per minute.
Available Configurations

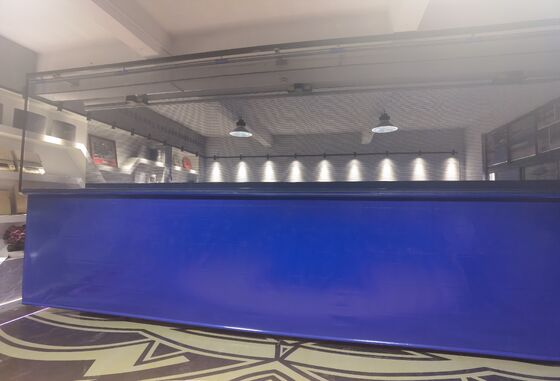

Customized Color High-Strength Polyester Fiber Sports Hall Divider Net with 7.5m per Minute Operation 4
Available in a wide variety of vinyl and mesh colors:
  • Solid and Mesh: Solid and Mesh with Padded Bottom Tube
  • All Solid: All Solid with Padded Bottom Tube
  • All Mesh: All Mesh with Padded Bottom Tube
Construction Features
Customized Color High-Strength Polyester Fiber Sports Hall Divider Net with 7.5m per Minute Operation 5 Customized Color High-Strength Polyester Fiber Sports Hall Divider Net with 7.5m per Minute Operation 6
Horizontal seams allow smooth rolling action for optimal performance.
Quality Certifications
Customized Color High-Strength Polyester Fiber Sports Hall Divider Net with 7.5m per Minute Operation 7 Customized Color High-Strength Polyester Fiber Sports Hall Divider Net with 7.5m per Minute Operation 8 Customized Color High-Strength Polyester Fiber Sports Hall Divider Net with 7.5m per Minute Operation 9
Packaging & Shipping
Customized Color High-Strength Polyester Fiber Sports Hall Divider Net with 7.5m per Minute Operation 10 Customized Color High-Strength Polyester Fiber Sports Hall Divider Net with 7.5m per Minute Operation 11 Customized Color High-Strength Polyester Fiber Sports Hall Divider Net with 7.5m per Minute Operation 12 Customized Color High-Strength Polyester Fiber Sports Hall Divider Net with 7.5m per Minute Operation 13 Customized Color High-Strength Polyester Fiber Sports Hall Divider Net with 7.5m per Minute Operation 14 Customized Color High-Strength Polyester Fiber Sports Hall Divider Net with 7.5m per Minute Operation 15
Company Introduction
Flyon has specialized in EPDM and SBR granules production for more than ten years, bringing extensive expertise to sports facility solutions.
Customized Color High-Strength Polyester Fiber Sports Hall Divider Net with 7.5m per Minute Operation 16 Customized Color High-Strength Polyester Fiber Sports Hall Divider Net with 7.5m per Minute Operation 17 Customized Color High-Strength Polyester Fiber Sports Hall Divider Net with 7.5m per Minute Operation 18
Frequently Asked Questions
What is your delivery time?
We have flexible delivery time. For in stock and mass production, it is about 5 working days and 25-35 working days respectively.
Can you provide warranty?
Yes! We provide 5 years' quality warranty and 10 years' backup support.
Can I get your samples?
Yes! Flyon Sports offers free samples for our customers, about 3 days for preparation.
Do you provide OEM service?
Yes! We provide OEM and ODM service.
