Customizable Size High-Strength PVC Divider Curtain for Sports Hall with 7.5m/min Lifting Speed

Name: Customizable Size High-Strength PVC Divider Curtain for Sports Hall with 7.5m/min Lifting Speed
Brand: Shenzhen Flyon Sports Co., Ltd.
SKU: 7.5 meters / minute
Price: 304.85 USD
Availability: InStock

Brand Name:	Flyon, Flyon
Model Number:	7.5 meters / minute
MOQ:	500
Price:	CN¥294.85-315.47

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China, China

Lifting Speed:

7.5 Meters / Minute

Material:

Mesh/Vinyl, PVC, High-strength Polyester Fiber Or Glass Fiber Fabric+PVC

Motor Voltage:

220 V AC

Motor Type:

Tubular Motor

Motor Diameter:

3 Feet

Stacking Dimension:

50 Cm

Maximum Length:

20 M

Maximum Area:

125 M²

Motor Phase:

Single-phase

Operation Type:

Key Switch, Wireless Remote

Overload Protection:

Automatic Reset Thermal Overload

Bottom Tube:

Padded

Seam Type:

Horizontal

Color Options:

Red, Blue, Green, Yellow, White, Grey, Customizable

Motor Synchronization:

Dual Motors For Larger Curtains

Highlight:

Customizable Size Divider Curtain

High-Strength PVC Sports Hall Divider

7.5m/min Lifting Speed Gymnasium Divider

Product Description

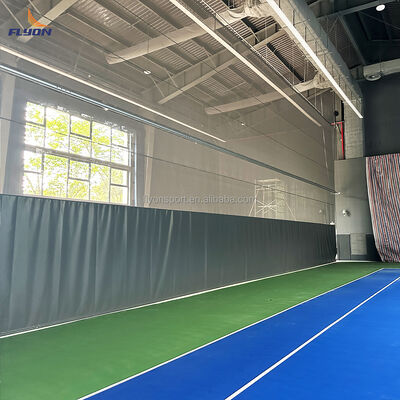

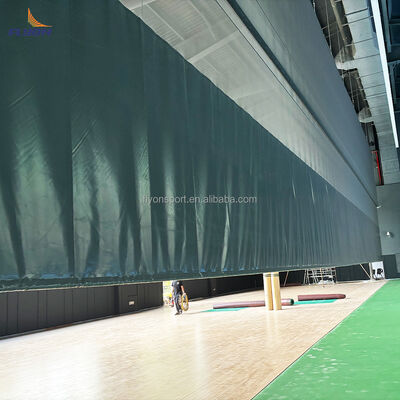

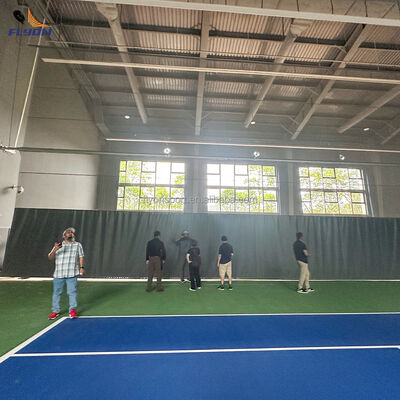

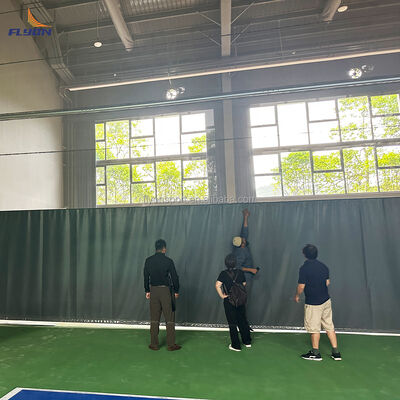

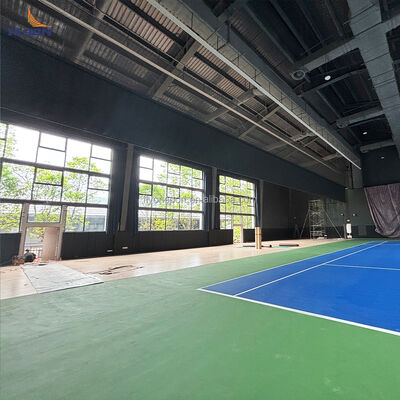

Center Roll Divider Curtain for Sports Facilities

The Center Roll Divider features an innovative overhead design that eliminates traditional hoist cables, straps, and support rollers. With minimal stack height, this system rolls both top and bottom sections compactly toward the ceiling, reducing wear points and operating twice as fast as standard dividers.

This maintenance-free assembly operates quietly with automatic overheating protection and permanent lubrication. When mounted directly to roof structures, it maintains clearance within 50cm of the ceiling. The fast folding action achieves 7.5 meters per minute and is available in solid, mesh, or combination finishes.

Product Specifications

Item	Value
Place of Origin	China
Product Name	Sports Hall Dividing Curtains
Color	Customizable
Brand	Flyon
Material	High-strength polyester fiber or glass fiber fabric + PVC
Suitable Places	Gymnasium, school, basketball court

Motor System

Utilizes 100 Nm, 220 V AC tubular motors with 3-foot diameter. The tubular-type motor (220V, single-phase) includes gear reducer and brake mechanism concealed within the horizontal batten tube. Equipped with push-button limit switches and automatic reset thermal overload protection.

Motor Configuration

Curtains up to 125 m² or 20 m long use single motor. Larger curtains utilize two synchronized motors. Includes standard key switch operation with optional wireless remote control.

Performance Specifications
