Electric Motorized Divider Curtain with Customizable Size and High Breathability for Sports Halls

Electric Motorized Divider Curtain with Customizable Size and High Breathability for Sports Halls

Brand Name: Flyon
Model Number: divider curtain
MOQ: 50 sqm
Price: 46-105 dollars per SQM
Payment Terms: T/T,Western Union
Supply Ability: >= 50000 SQM/Month
Detail Information
Place of Origin:
Shenzhen,China
Certification:
GBT5573-2008, CE
Material:
Mesh/ Vinyl
Color:
Red, Blue, Green, Yellow, White, Grey, And Customized
Size:
Customizable
Lifting Speed:
7.5 Meters / Minute
Breathability:
> 45%
Packaging Details:
Standard Package
Packaging Details:
Wooden boxes
Supply Ability:
>= 50000 SQM/Month
Highlight:

Electric Motorized Divider Curtain

,

Customizable Size Dividing Curtain

,

High Breathability Sports Hall Divider

Product Description
Electric Motorized Divider Curtain with Customizable Size and High Breathability for Sports Halls
Professional sports dividing curtains designed for efficient space management in multi-purpose sports halls and facilities.
Single Curtain System Specifications
Product Name Divider Curtain Total Hanging Weight ≤ 2.5 kg/m
Maximum Height 12m Hanging Spacing ≤ 3m
Maximum Width 36m Maximum Bearing Capacity (per lifting point) ≤ 80kg
Maximum Area 300m² Maximum Hanging Weight ≤ 750kg
Color Choices
Electric Motorized Divider Curtain with Customizable Size and High Breathability for Sports Halls 0
Electric Motorized Divider Curtain with Customizable Size and High Breathability for Sports Halls 1
Model Options
Electric Motorized Divider Curtain with Customizable Size and High Breathability for Sports Halls 2
Installation Safety Requirements
  • A safety gap of at least 50cm should be maintained between this partition curtain system and adjacent partition curtains or walls.
  • A safety distance of at least 15cm must be left on the side without the engine running.
  • There should be at least 5cm clearance between the bottom of the partition curtain and the ground.
Electric and Control System
The middle reel utilizes a high-performance drum motor (220V, 450W, 120N/M) with internal meshing planetary gear reducer, upper and lower brake limiters, push-button limit switches, automatic reset and thermal overload protection systems for stable and reliable operation.
Product Advantages
  • Double curtains made of high-quality PVC for superior sound absorption
  • Partial mesh design allows natural light transmission
  • Complete system includes all required materials, parts, and aluminum truss load-bearing structure
  • Environmentally friendly, tear-resistant, high-strength, and fire-resistant materials
  • Simple operation with multiple configuration options available

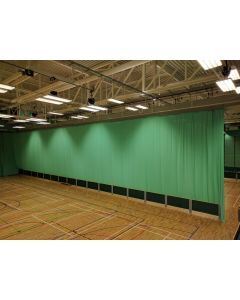

Project Presentation
Electric Motorized Divider Curtain with Customizable Size and High Breathability for Sports Halls 3
Electric Motorized Divider Curtain with Customizable Size and High Breathability for Sports Halls 4
Electric Motorized Divider Curtain with Customizable Size and High Breathability for Sports Halls 5
