Electric Control System Fireproof Environmental Friendly Divider Curtain Partition Curtain

Electric Control System Fireproof Environmental Friendly Divider Curtain Partition Curtain

Brand Name: Flyon
Model Number: Divider Curtain
MOQ: 50 sqm
Price: 46-98 dollars per sqm
Payment Terms: T/T,Western Union
Supply Ability: >= 50000 sqm/month
Detail Information
Place of Origin:
China
Certification:
SGS/GB-8624 (B2 level)
Material:
PVC/ High Strength Fabric
Color:
Customer's Request
Pattern:
Customizable
Environmental Performance:
GB-18586
Breathability:
> 45%
Tear Resistance:
GB/T 3917.3-2009
Packaging Details:
Wooden boxes
Supply Ability:
>= 50000 sqm/month
Highlight:

Electric Control System Divider Curtain

,

Fireproof Partition Curtain

,

Environmental Friendly Dividing Curtain

Product Description
Electric Control System Fireproof Environmental Friendly Divider Curtain Partition Curtain
Special discounts available for new and existing customers.
Contact us for specific discount details.
Single Curtain System Specifications
Product Name Divider Curtain Total Hanging Weight ≤ 2.5 kg/m
Maximum Height 12m Hanging Spacing ≤ 3m
Maximum Width 36m Maximum Bearing Capacity (per lifting point) ≤ 80kg
Maximum Area 300m² Maximum Hanging Weight ≤ 750kg
Color Options
Electric Control System Fireproof Environmental Friendly Divider Curtain Partition Curtain 0
Electric Control System Fireproof Environmental Friendly Divider Curtain Partition Curtain 1
Model Variations
Electric Control System Fireproof Environmental Friendly Divider Curtain Partition Curtain 2
Installation Safety Requirements
• A safety gap of at least 50 cm should be reserved between this partition curtain system and adjacent partitions or walls
• A safety clearance of at least 15 cm should be maintained on the side without motor drive system
• At least 5 cm ground clearance shall be reserved between the bottom of the partition curtain and the ground
Electric Control System Features
  • High-performance drum motor (220V, 450W, 120N/M)
  • Internal planetary gear reducer for smooth operation
  • Up-and-down position brake limiter for precise control
  • Push-button limit switch with automatic reset
  • Thermal overload protection system for safety
  • All components integrated in middle winding drum for reliability
Product Advantages
  • Double layer curtain with high-quality PVC for superior sound absorption
  • Partial netting design allows natural light transmission
  • Complete system includes all necessary materials and segments with aluminum truss carrier structure
  • Environmentally friendly construction with tear resistance and high strength
  • Fireproof materials for enhanced safety
  • User-friendly operation with various customization options available

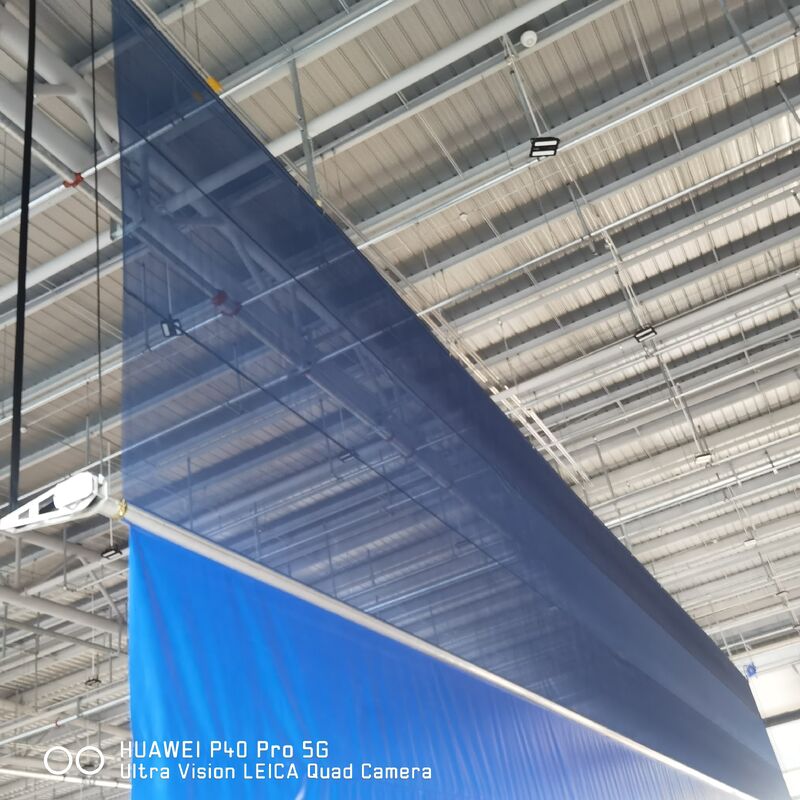

Project Gallery
Electric Control System Fireproof Environmental Friendly Divider Curtain Partition Curtain 3
